Beam Expanders
Galilean type, compact or zoom beam expanders for 1064 nm, 532 nm and 355 nm wavelengths.
- Adjustable expansion ratio
- Adjustable divergence
- Galilean design
EKSMA OPTICS offers compact Galilean type zoom beam expanders for Nd:YAG lasers fundamental and its harmonics wavelength: 1064 nm, 532 nm and 355 nm.

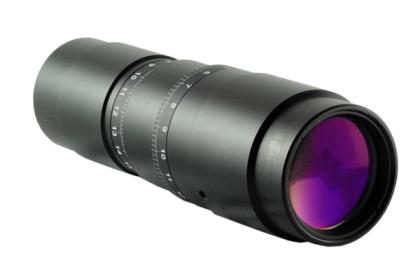

Zoom beam expander provides variable expansion ratio of 2x-8x, 1x-8x, 1x-3x with adjustable focus to correct for laser beam divergence.
Drawings are available upon request.

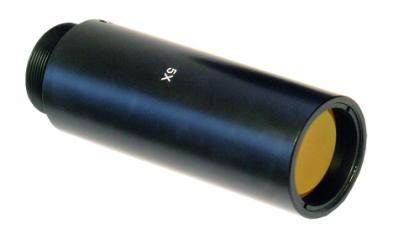

The Compact Beam Expander is designed to increase the diameter of a collimated input beam to a larger collimated output beam. EKSMA OPTICS offers compact Galilean type beam expanders for 1064 nm, 532 nm and 355 nm wavelengths. The Compact Beam Expander has a possibility to be adjusted for the input beam divergence angle to obtain collimated, divergent or focused beam at the output.
