Beam Dumps
Air-Cooled Beam Dump and Water-Cooled Beam Dump for blocking a CW or a pulsed laser beam. Air-Cooled Beam Dump can be used for up to 50 W in the wavelength range from 0.1-30 µm. Water-Cooled Beam Dump can be used for beams up to 1 kW in the wavelength range from 0.1-30 µm.

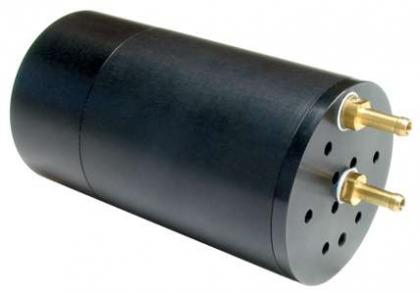

Water-Cooled Beam Dump 990-0820 blocks a CW or a pulsed laser beam. It is mainly intended for beams 2 inch wide.
Water absorbs much energy. So, the dump is best suited for beams of up to 1 kW. The wavelength range is from 0.1 to 30 µm.
Even if the non-reflective coating is damaged by high intensity pulses, the beam is not reflected back into an optical scheme.
The dump mounts on an M6 hole on its back.

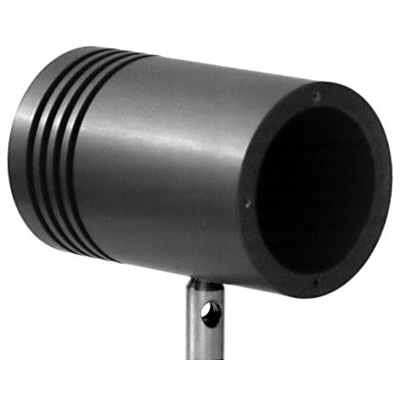

Air-Cooled Beam Dump 990-0800 is designed to block a CW or a pulsed laser beam. It can be used for beams of up to 50 W in the wavelength range from 0.1 to 30 µm. The design is such that even if the non-reflective coating is damaged by high intensity pulses, there is no backward reflection.
