Base Positioners (850)
Bases such as multi-axes tilt platform, kinematic bases, magnetic kinematic bases, single axis tilt stage, adjustable height platform that are designed for horizontal positioning of groups of units.

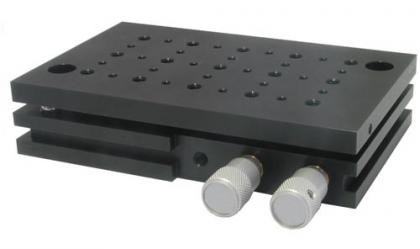

/Multi-Axis Tilt Platform 850-0010/850-0010_img_big.jpg)
The Multi-Axis Tilt Platform provides angular adjustment about two axes - tilting and in-plane rotation. The mounting platform is rotated around kinematic pivot point by two micrometers.

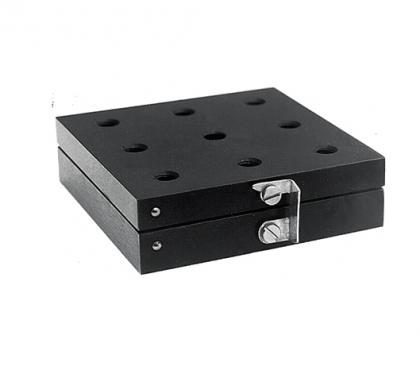

/Kinematic Bases 850-0020, 850-0022/img_850-0020.jpg)
A kinematic base is used for repeated positioning of groups of units mounted on its platform. A platform has M6 mounting holes.

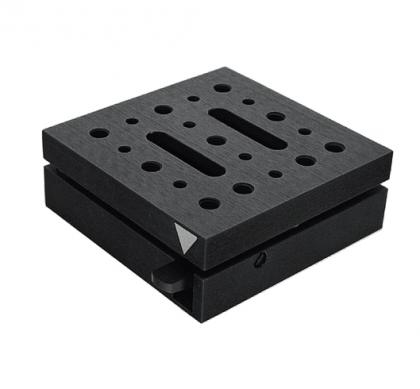

/Magnetic Kinematic Base 850-0030/850-0030_jpg.jpg)
The Magnetic Kinematic Base enables to lift the units mounted on the platform as a group. The platform is replaced with a repeatability of 50 µm.

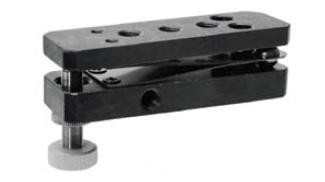

/Single Axis Tilt Stage 850-0040/850-0040-08.jpg)
The Single-Axis Tilt-Stage, made of aluminium, provides tilt range of 6° with 6 μrad sensitivity. Pivot is done on two hardened steel balls.

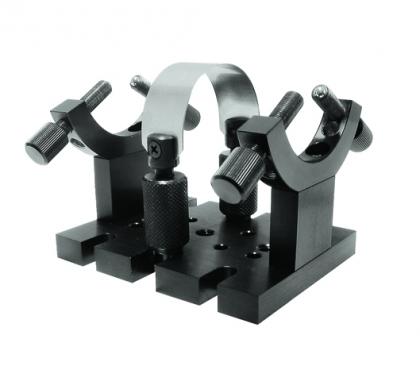

/Adjustable LaserLaser Head Holder 850-0095/850-0095_photo.jpg)
The Adjustable Laser/Laser Head Holder is used for repeatable mounting and drift-free pointing of laser heads and other cylindrical objects.
/Adjustable Height Platform 850-0200/850-0200_adjustable_height_platform.jpg){kind=link}

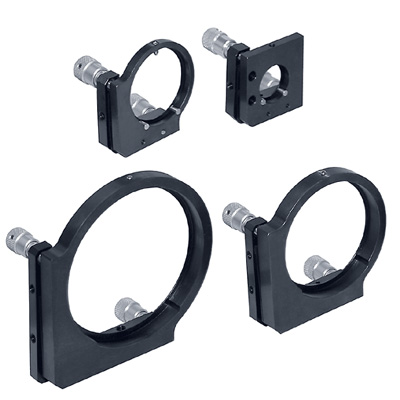

/Precision & High Stability MirrorBeamsplitter Mounts 840-0036/840-0036_img.jpg)
The Adjustable Height Platform of original construction is a stable vertical translation stage of original design with 25 mm travel range and maximum load capacity of 3 kg.
