Base Mounts & Accessories (820)
Bases and items for mounting to a base include: standard rods, collar, rod translators, rod holders, movable bases, riser blocks, rod clamps, solid base height extenders, table clamps, connecting cones, hex keys, screws.

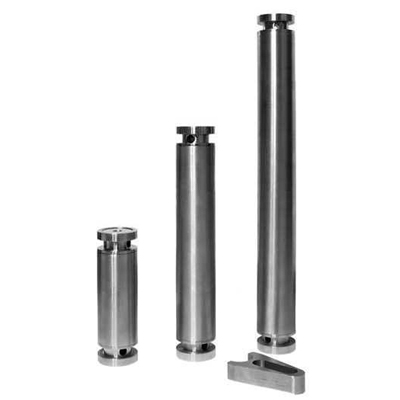

/Silent Rods 795-0010/795-0010_img.jpg)
Great stiffness, sturdiness and strength of steel allow the Silent Rods to support large loads with great stability. Each rod has M6 tapped holes on, and a groove around both ends.

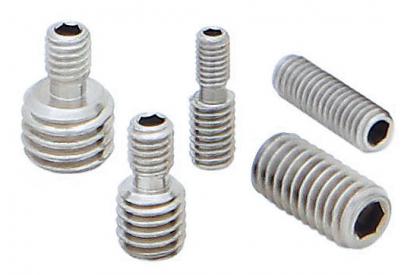

/Thread Adapters 795-0016/thread_adapters.jpg)
Thread Adapters connect components when precise orientation in plane is not required. Some adapters have different threads on ends, so components can be connected with M4 and M6 threaded holes.

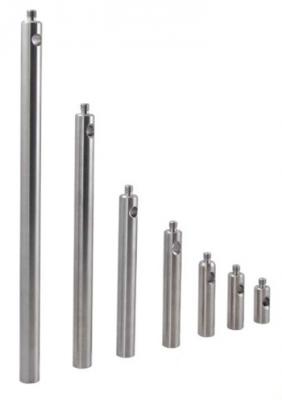

/Standard Rods 820-0010, 820-0020/820-0010smaller.jpg)
These 12 mm diameter stainless steel rods have M6 male threads on the top and M6 tapped holes on the bottom. This allows to mount all accessories directly on the rod.
/Collar 820-0030/820-0030.jpg)
The Collar allows to fix model 820-0010 Standard Rods at desirable height and to rotate the rod without changing height.

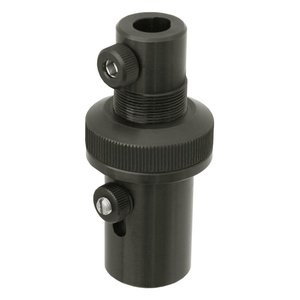

/Translating Post Holder 820-0045/820-0045.jpg)
The Translation Post Holder is used for height adjustment of components mounted on 12 mm posts or equivalent. Range of coarse height setting is 50 mm.

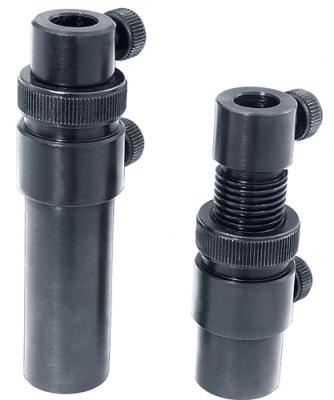

/Rod Translators 820-0040/img_820_0040_xx.jpg)
The Rod Translators provide stable mounting, vertical translation and fixing of 820-0010 Standard Rods.
