Variable Wheels Attenuators

Closed or Motorized Variable Wheels Attenuators

...

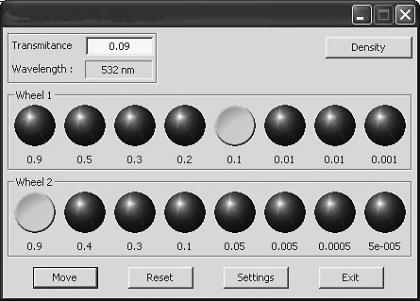

Computer Software for Motorized Attenuator

Computer Software for Motorized Attenuator is designed to control motorized attenuator unit with one of our stepper motor controllers: 980-0030F-USB or 980-0030-RS232.

Download Brochure

...

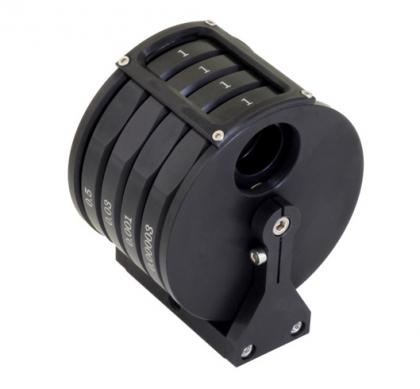

Closed Variable Wheel Attenuator 990-0704

Closed Variable Wheel Attenuator 990-0704 is used when photodetectors with high sensitivity (e.g. CCD, photomultiplier, etc.) are used and it is necessary to eliminate the side background lighting fully.

Download Brochure

...

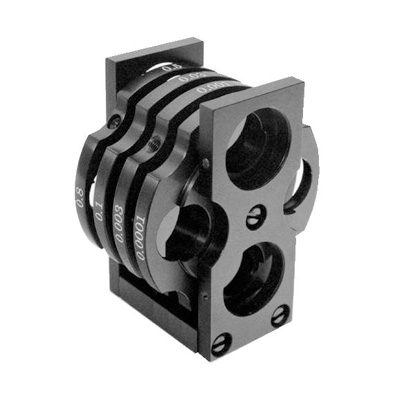

Variable Wheel Attenuator 990-0604

Variable Wheel Attenuator 990-0604 is a basic model with 4 filter-set wheels. Each wheel contains 4 filter mounts each of Ø20 mm with a clear aperture of Ø18 mm.

Download Brochure

...

Applications of Optical Filters

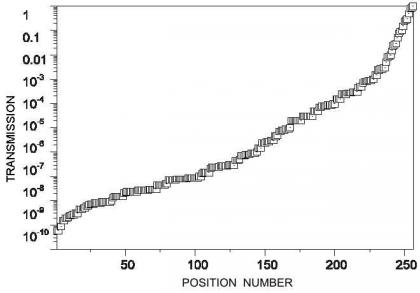

A choice of filters is available for our standard 4-wheel attenuators, allowing 256 relative positions of wheels, rendering 99 different transmission values, among which you can find a very close match to the desired value.





Download Brochure

...

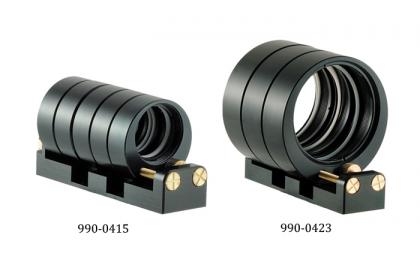

Filters Holder with 90° Flip 990-0400

The holder of 1 inch filters 990-0415 allows fixation of up to 5 filters into 1 inch optics ring holders. The thickness of optical filters (or any other optical elements) to be held is from 0.5 mm to 8.0 mm.

Download Brochure

...

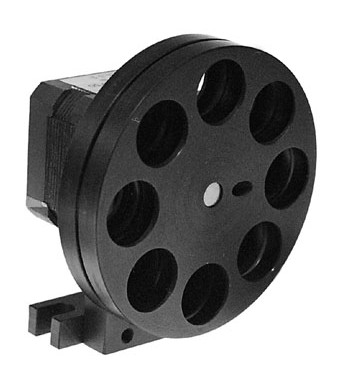

Motorized Variable Two Wheels Attenuator 991-0602

Motorized Variable Two Wheel Attenuator 991-0602 consists of two filter wheels. Each wheel contains eight filter mounts of either Ø20 or Ø25,4 mm with a clear aperture of either Ø18 or Ø23 mm.

Download Brochure

...

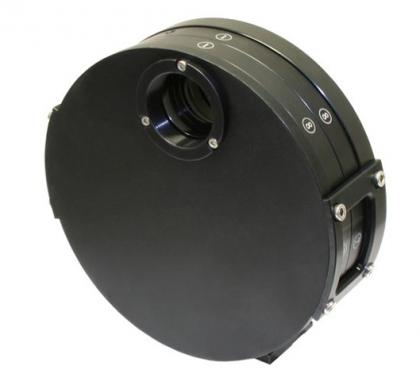

Motorized Closed Variable Two Wheels Attenuators 991-0702

Motorized Closed Variable Two Wheel Attenuator 991-0702 consists of two filter wheels. Each wheel contains eight filter mounts of either Ø20 or Ø25,4 mm with a clear aperture of either Ø18 or Ø23 mm.

Download Brochure
