Variable Attenuators
Various variable attenuators for linearly polarized laser beam are available. Continuously variable attenuators /beamsplitters are comprised of 2 high performance optics components (multiple order half waveplate and cube polarizing beamsplitters or achromatic air-spaced waveplate and glan-taylor laser polarizing prism) for different laser applications. Variable attenuators for linearly polarized laser beam with high performance optics (multiple, zero order optically contacted or air-spaced waveplates and thin film brewster types polarizers) are available for Nd:YAG Laser applications, femtosecond applications and high power femtosecond applications.
- Divides laser beam into two beams of manually adjustable intensity ratio
- Convenient 90° angle between reflected and transmitted beams
- Negligible beam deviation
- Large dynamic range
- Broadband transmission
- Weight – 0.16 kg
- Divides laser beam into two beams of manually adjustable intensity ratio
- Convenient 90° angle between reflected and transmitted beams
- Negligible beam deviation
- Large dynamic range
- Broadband transmission
- Weight - 0.16 kg

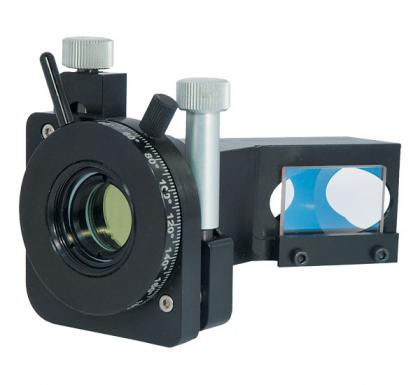

Variable Attenuators for Linearly Polarized Laser Beam 990-0070
- Divides laser beam into two parallel beams of manually adjustable intensity ratio
- Large dynamic range
- Negligible transmitted beam deviation
- High Optical damage threshold
- S-Pol attenuation range ~ 0.25% - 99.0%
- P-Pol attenuation range ~ 0.5 % - 95.0 %

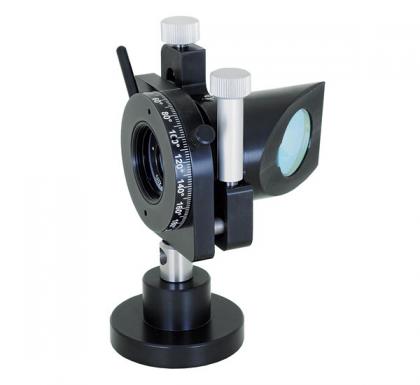

Variable Attenuators for Linearly Polarized Laser Beam 990-0071
- Divides laser beam into two beams of manually adjustable intensity ratio separated by 68° angle
- Large dynamic range
- Negligible transmitted beam deviation
- High optical damage threshold
- Attenuation range for transmitted beam: 0.5%-95%
- Attenuation range for reflected beam: 5%-99.5%

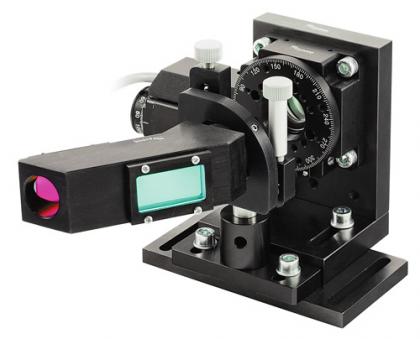

Motorized Variable Attenuator for Linearly Polarized Laser Beam 990-0070M
his Motorized Variable Attenuator / Beamsplitter consists of special design Opto-mechanical Adapter and Precision Opto-mechanical Holder 840-0193. Two Thin Film Brewster type polarizers, which reflect s-polarized light while transmitting p-polarized light, are housed into the Adapter. Quartz Half Waveplates are housed in Motorized Rotation Stage 960-0161.

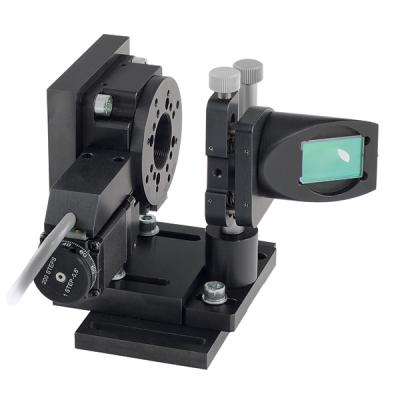

This Motorized Variable Attenuator / Beamsplitter consists of special design Opto-mechanical Adapter for Polarizer at 56° 840-0117A or 840-0118A and Precision Opto-mechanical Holder 840-0193.
