Nd:YAG Laser Mirrors
Wide selection of laser mirrors for Nd:YAG Laser fundamental wavelengths and its harmonics: 1064 nm, 532 nm, 355 nm, 266 nm. Nd:YAG Laser Line mirrors are available from BK7 or UVFS optical material. Laser line and dual band mirrors are designed to operate at 45° or 0° deg angle of incidence. Nd:YAG Laser Line also includes: Laser Rear Mirrors, Laser Output Couplers, Laser Harmonic Separators, Laser Beamsplitters. The coating technology for Nd:YAG Laser Line Mirrors is electron beam multilayer dielectric or ion beam sputtering for high reflectivity mirrors operating. Most of the Nd:YAG Laser Mirorrs are available for fast off-the-shelf delivery.

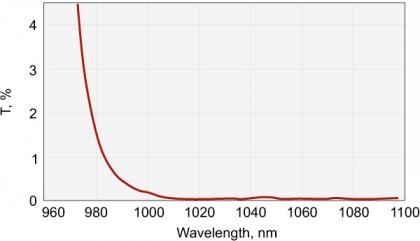

Nd:YAG Laser Line Mirrors
Two kinds of substrate material are available. Laser line mirrors are designed for 45° or 0° deg angle of incidence.

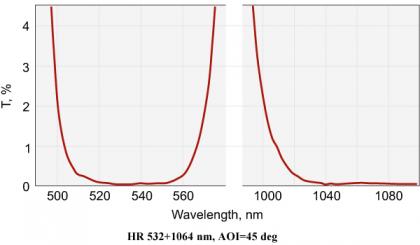

Nd:YAG Laser Dual Band Mirrors
Dual Laser Line Mirrors are made of high quality BK7 or UVF. The mirrors are designed for 45° or 0° deg angle of incidence.

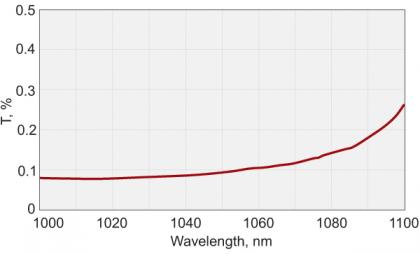

Nd:YAG Laser Rear Mirrors
Laser rear mirrors with hard dielectric coatings for pulsed and CW high power fundamental Nd:YAG laser applications.

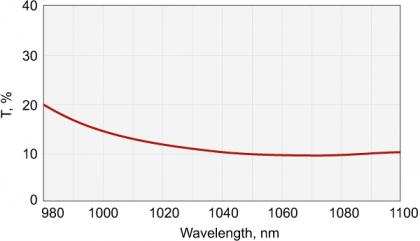

Nd:YAG Laser Output Couplers
Laser Output Couplers transmits a part of the circulating intracavity power for generating a useful output from the laser.

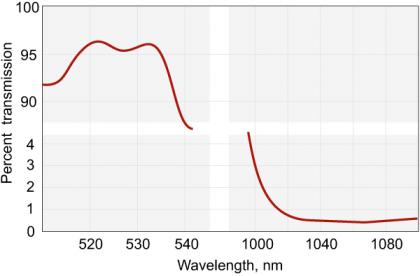

Nd:YAG Laser Harmonic Separators
Reflectance is higher than 99.5% for the wavelength of interest and transmittance is at least 90% for the rejected wavelengths.

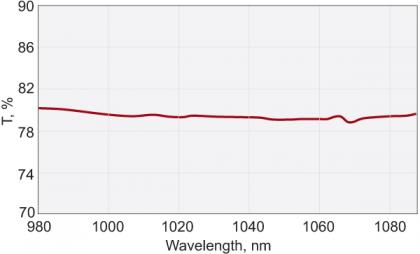

Nd:YAG Laser Beamsplitters
The Beamsplitter splits average polarized laser beam into two beams separated by 90 deg from each other.
