Adjustment Screws (870)

Adjustment screws include precise and micrometer screws, thin and mini micrometers, compact fine screws, adjustment screws, fine hex adjustment screws.

...

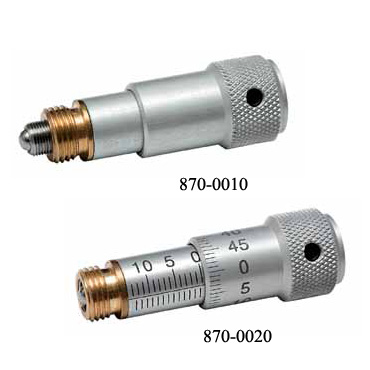

Precise 870-0010 and Micrometer 870-0020 Screws

The travel of Precise adjustment screw and Micrometer screw is 13 mm. Their thread step is 0.5 mm.

Download Brochure

...

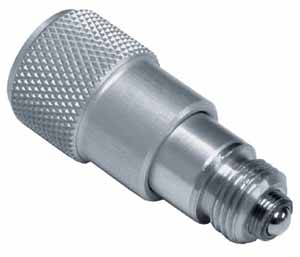

Fine Closed Screw 870-0030

The Fine Closed Screw provides high 1 µm resolution and smooth movement. Its travel range is 10 mm and it is used with most of our mounts.



Download Brochure

...

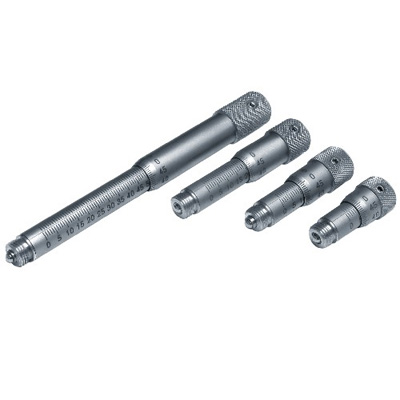

Micrometer Screws 870-0040

The Micrometer screws have M6×0.5 internal driving screw thread. External mounting thread is M10x1. External M10x0.5 mounting thread is available on request.

Download Brochure

...

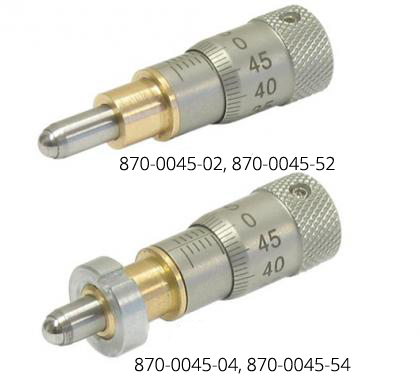

Thin Micrometers 870-0045

Designed for micro-positioning applications, stainless steel screw with hardened steel ball tip and brass threaded collar. Very smooth motion allows positioning with sensitivity of 1 µm.



Download Brochure

...

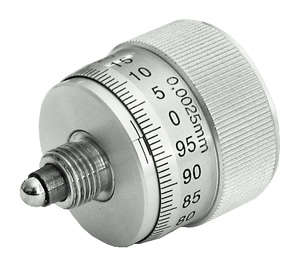

High-Resolution Micrometers 870-0050, 870-0050-02

The Stainless steel screw with hardened steel ball tip, brass threaded collar, mounts on M10 holes, scale 2.5 µm division and nominal travel of 5, 10 mm.

Download Brochure

...

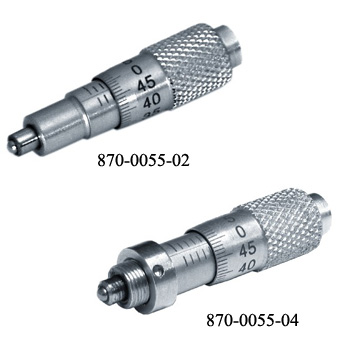

Mini Micrometers 870-0055

Designed for micro-positioning applications, stainless steel screw with hardened steel ball tip, brass threaded collar, scale 10 μm division, nominal travel 6.35 mm. Very smooth motion allows positioning with sensitivity of 1 μm.

Download Brochure
